54.06

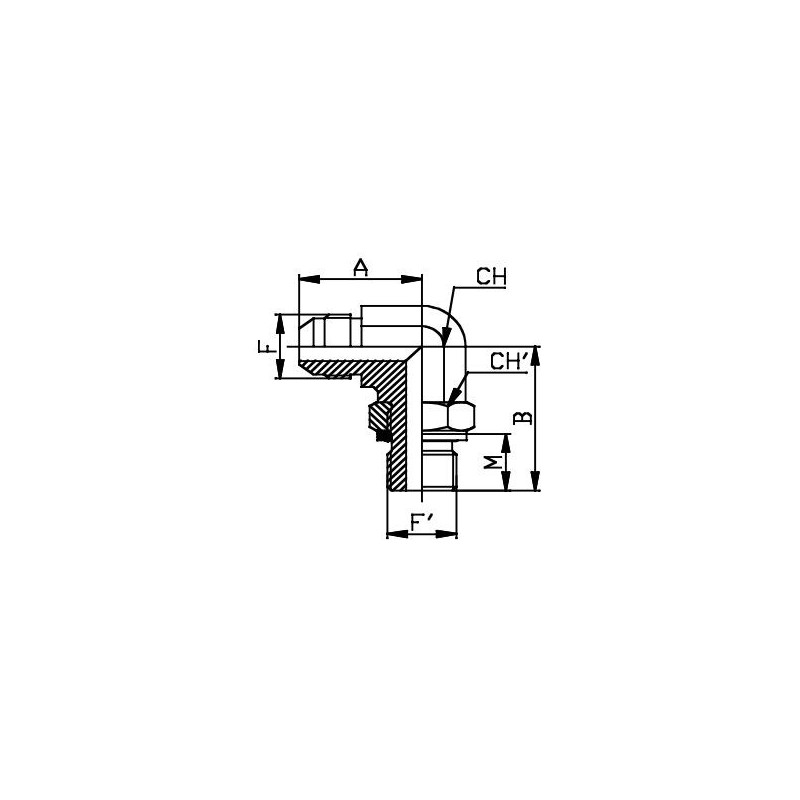

Koleno 90°
Moški priključek JIC 37° X SAE O-ring Boss prilagodljivi priključek UNF
Dokumenti
Koleno 90°
Moški priključek JIC 37° X SAE O-ring Boss prilagodljivi priključek UNF
| A (mm) | B (mm) | CH (mm) | CH' (mm) | Colski navoj (cola) | F' (cola) | M (mm) | |
|---|---|---|---|---|---|---|---|
| 22.6 | 26.2 | 11 | 14 | 7/16 | 7/16 | 9 | |
| 24.1 | 27.7 | 13 | 16 | 7/16 | 1/2 | 9 | |
| 24.1 | 27.7 | 13 | 16 | 1/2 | 1/2 | 9 | |
| 26.9 | 31.8 | 14 | 17 | 9/16 | 9/16 | 10 | |
| 31.8 | 36.8 | 19 | 22 | 3/4 | 3/4 | 11 | |
| 34 | 43.2 | 22 | 27 | 3/4 | 7/8 | 11 | |
| 36.8 | 43.2 | 22 | 27 | 7/8 | 7/8 | 12.5 | |
| 42.2 | 45.2 | 27 | 27 | 1 1/16 | 7/8 | 15 | |
| 42.2 | 49.3 | 27 | 32 | 1 1/16 | 1 1/16 | 15 | |
| 46 | 52.1 | 33 | 32 | 1 5/16 | 1 1/16 | 15 | |
| 46 | 52.1 | 33 | 38 | 1 5/16 | 1 5/16 | 15 | |
| 52.3 | 57.2 | 41 | 50 | 1 5/8 | 1 5/8 | 15 | |
| 59.2 | 60.7 | 48 | 55 | 1 7/8 | 1 7/8 | 15 |
