50.49
Reducir

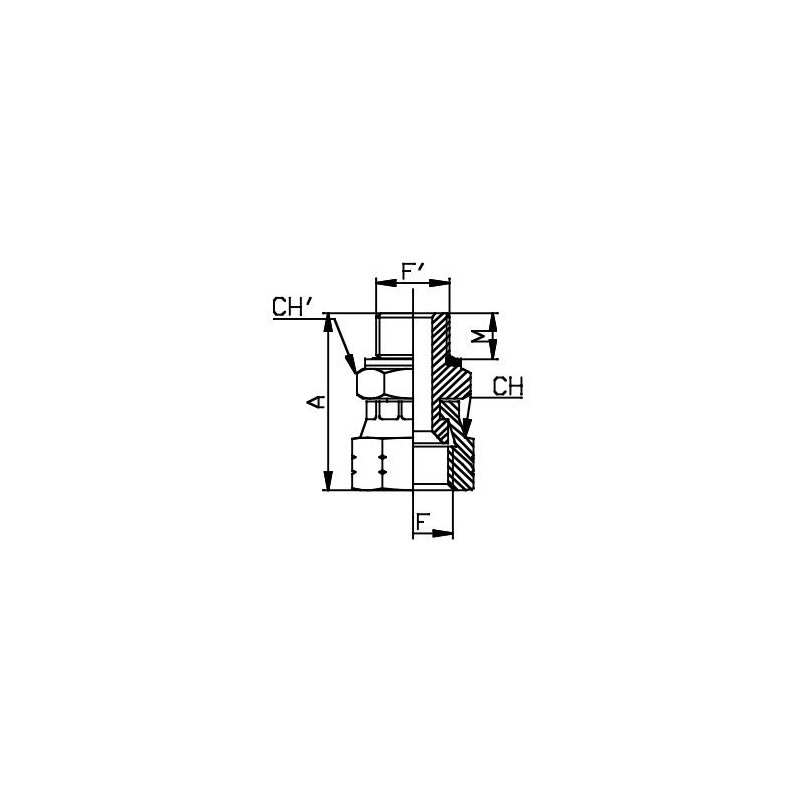

Ženski vrtljivi priključek JIC 37° X Moški priključek BSPP
Dokumenti
Reducir
Ženski vrtljivi priključek JIC 37° X Moški priključek BSPP
| A (mm) | CH (mm) | CH' (mm) | Colski navoj (cola) | F' (cola) | M (mm) | |
|---|---|---|---|---|---|---|
| 32.1 | 16 | 16 | 7/16 | 1/8 | 6.3 | |
| 35.3 | 16 | 19 | 7/16 | 1/4 | 9.5 | |
| 36.3 | 16 | 19 | 1/2 | 1/4 | 9.5 | |
| 37.2 | 19 | 19 | 9/16 | 1/4 | 9.5 | |
| 38.2 | 19 | 22 | 9/16 | 3/8 | 9.5 | |
| 39.9 | 22 | 19 | 3/4 | 1/4 | 9.5 | |
| 40.9 | 22 | 22 | 3/4 | 3/8 | 9.5 | |
| 44.4 | 22 | 30 | 3/4 | 1/2 | 13 | |
| 48.9 | 27 | 30 | 7/8 | 1/2 | 13 | |
| 51.5 | 32 | 36 | 1 1/16 | 3/4 | 13 | |
| 56.4 | 38 | 36 | 1 5/16 | 3/4 | 13 | |
| 59.4 | 38 | 46 | 1 5/16 | 1 | 16 | |
| 64.6 | 50 | 50 | 1 5/8 | 1 1/4 | 16 | |
| 70.2 | 60 | 60 | 1 7/8 | 1 1/2 | 16 |
